DUST CAPS
Aline Trading stock a wide range of replacement dust caps suitable for axles used in on- road and off-road, agricultural applications.

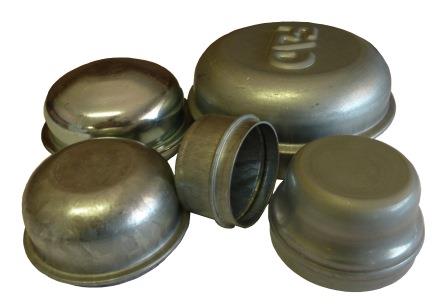

Knock in pressed metal caps are available in metric or imperial fitments.
Screw in pressed metal caps for agricultural axles in metric fitments.
We also have a selection of cast iron bolt on caps for heavy duty agricultural axles.

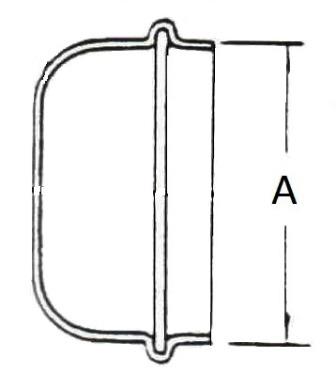

| Knock in Dust Caps - Imperial | |
| Part No | Size - Dimension A |
| AL03147 | 1 3/4" - 44.45mm |
| AL03400 | 1 3/4" - 44.45mm BEARING BUDDIES - EA |
| AL03517 | 2" - 50.8 mm |
| AL03089 | 2 1/16" - 52.387 mm |
| AL03065 | 2 1/2" - 63.5mm |
| AL03335 | 2.441" (62mm) - DEXTER 12" Electric hub. |
| AL03263 | 2.72" - (69mm) |
| AL03334 | 3" - 76.2mm |
| Knock in Dust Caps - Metric | |
| PART No | Size - Dimension A |
| AL03257 | 59mm |
| AL03043 | 62mm |
| AL03019 | 80mm |
| AL03020 | 85mm |
| AL03042 | 90mm |
| AL03041 | 100mm |
| AL03044 | 110mm |
| AL03021 | 120mm |

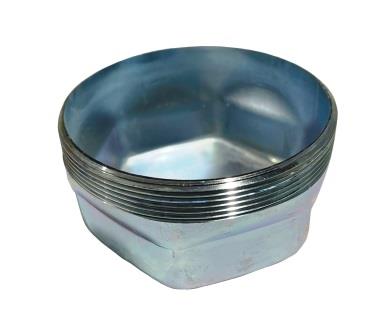

| Screw In Dust Caps - Metric. | ||
| Part No | Series | Thread |
| AL03560 | 50L | M53.5x1.5 |
| AL03466 | 50 | M63.5x1.5 |
| AL03472 | 60 Old |
M73.5x1.5 |
| AL03559 | 60 New |
M81.5x1.5 |
| AL03478 | 70 |
M86.5x1.5 |
| AL03482 | 80 | M101.5x1.5 |

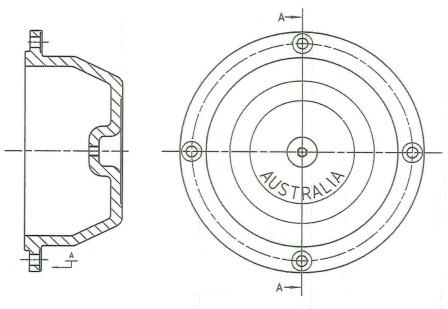

| Bolt on Cast Iron dust caps. | ||
| Part No | Series | No Screws |
| AL03350 | H50/H50HD | 3 |
| AL03409 | 63 | 3 |
| AL03410 | 75/80 | 3 |
| AL03341 | 90/100 | 4 |
| AL03411 | 110 | 6 |
| AL03412 | 150 | 6 |
