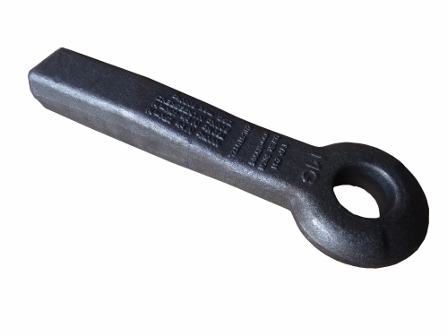

AL02767 - 40mm RIGID 6000 KgThe AL02767 is a rigid weld on tow eye suitable for agricultutal or industrial applications.
Product complies with rule 2015/208 EU (dimensions referred to ISO 8755:2001)
Approval No: e1*2015/208*2015/208ND*00177*00
Made in Italy.

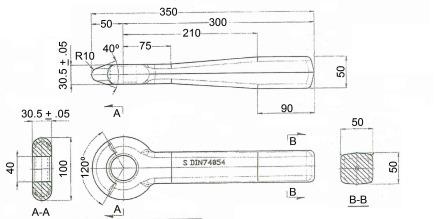

| Part number | AL02767 |
| Type | Rigid |
| Eye diameter | 40mm |
| Shank | 50mm x 50mm |
| Length | 350 mm |
| Tongue thickness | 30.5mm |
| Low speed capacities. | |
| Pull load | 6000 kg |
| Dynamic load | 1000 kg |
| Weight | 5.2kg |
| Figures per 2015/208 EU | |
| Speed < 40 km/h | Dc= 24.3kN ; S =760 kg |
| Speed > 40 km/h | Dc= 24.3kN ; S=550 kg |
| Value D | 32kN when S=0 |
