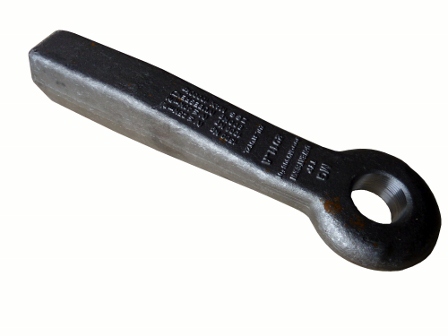

AL00766 40mm RIGID 10000 KgThe AL00766 is a rigid weld on tow eye suitable for agricultutal or industrial applications.
Product complies with rule 2015/208 EU (dimensions referred to ISO 8755:2001)
Approval No: e1*2015/208*2015/208ND*00016*00
Made in Italy.

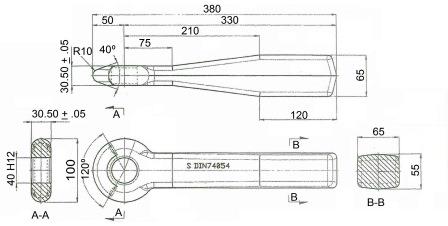

| Part number | AL00766 |
| Type | Rigid |
| Eye diameter | 40mm |
| Shank | 55mm x 65mm |
| Length | 380 mm |
| Tongue thickness | 30.5mm |
| Low Speed Capacities | |
| Pull load | 10000 kg |
| Dynamic load | 1500 kg |
| Weight | 6.8 KG |
| Figures per 2015/208 EU | |
| Speed < 40 km/h | Dc=38kN ; S=1020 kg |
| Speed> 40 km/h | Dc = 38kN ; S=700 kg |
| Value D | 100 kN when S=0 |
