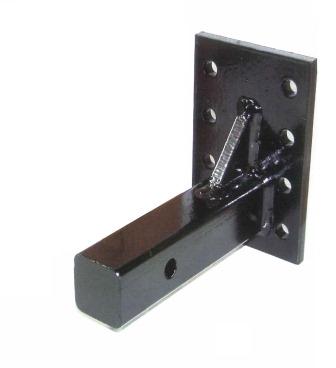

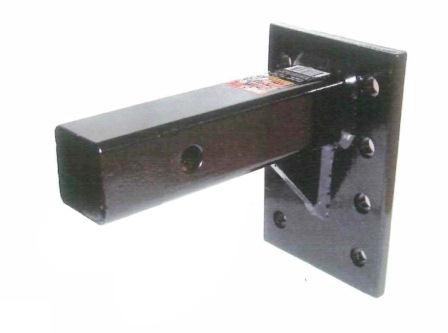

PINTLE HOOK MOUNTAn 8 hole, pintle hook mount with high and low positioning.
Finished with black powder coat for superior durability and corrosion resistance.
| Part No | AL02440 |
| CRN | 44737 |
| M.G.T.W. (ATM) | 6000 kg |
| 'D' Value | 88.31kN |
| Shank size | 2" x 2" x 9" long |
| weight | 4.6 kg |
| Mount pattern. |
Horizontal = 85mm Vertical = 45mm |
| Shank | 50mm SQ Solid x 210mm |
| Mounting pin hole. | 17mm x 70mm from end. |
