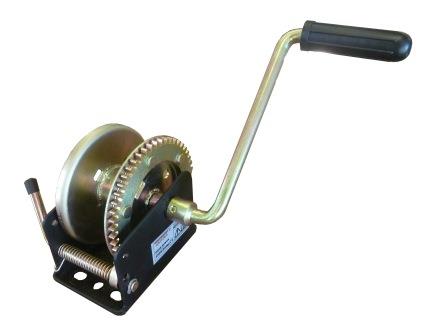

RHW450
The RHW450 is a compact yet strong general purpose hand winch and is ideal for use on Light applications where a higher winding speed is required.
Features:
- Compact design.
- Formed reinforcements in frame for added frame strength
- Very low torque required for ease of operation
- One way ratchet. Free spool in off direction.
- High quality one piece hardened steel gears.
- Superior finish quality for appearance and corrosion resistance.
- Extensively tested and QA inspected.
Note: The standard RHW450 is supplied without cable or strap. These are available as required. Please enquire.
| Part No | AL02637 |
| Model | RHW450 |
| Capacity | 450lb ( 204 Kg) |
| Gear ratio | 1:1 |
| Hub diameter | 45mm |
| Spool diameter | 133mm |
| Drum capacity. |
4mm diameter x 10m long. |
| Weight | 2.73 kg |

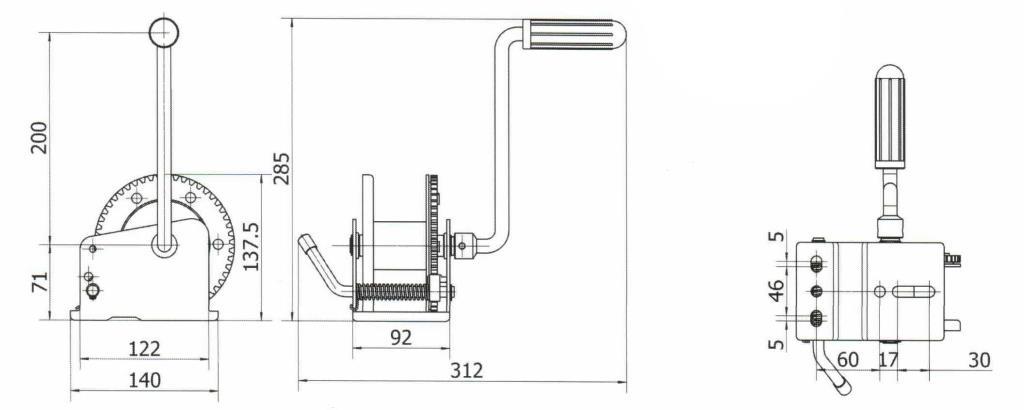

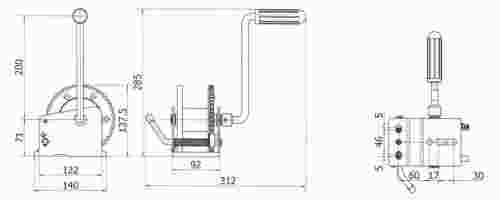

Click on drawing to enlarge.
