RHW1200The RHW1200 is a very popular general purpose hand winch used in numerous applications such as boat trailers, trailers and farm machinery.
Features:
- Compact design.
- Formed reinforcements in frame for added frame strength
- Very low torque required for ease of operation
- One way Ratchet. Free spool in off direction.
- High quality one piece hardened steel gears.
- Superior finish quality for appearance and corrosion resistance.
- Extensively tested and QA inspected.
The RHW1200 is presented in 5 standard variations.
| Part No | Description |
| AL01630 | Winch only. |
| AL01633 | Winch & cable, with safety hook. |
| AL01634 | Winch & cable with "S" hook. |
| AL01635 | Winch & strap with "S" hook |
| AL01642 | Winch & strap with Safety hook |
| Capacity | 1200lb ( 545.45 Kg) |
| Gear ratio | 4.1:1 |
| Hub diameter | 45mm |
| Spool diameter | 133mm |
| Cable | 4mm diameter x 10m long. |
| Strap | 50mm x 6.1m long. - 1.5t rated. |

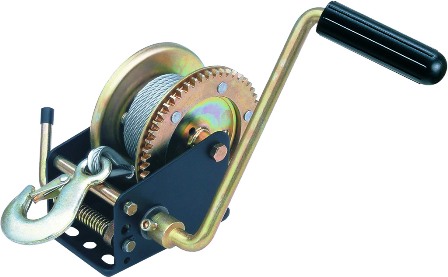

AL01633 shown.

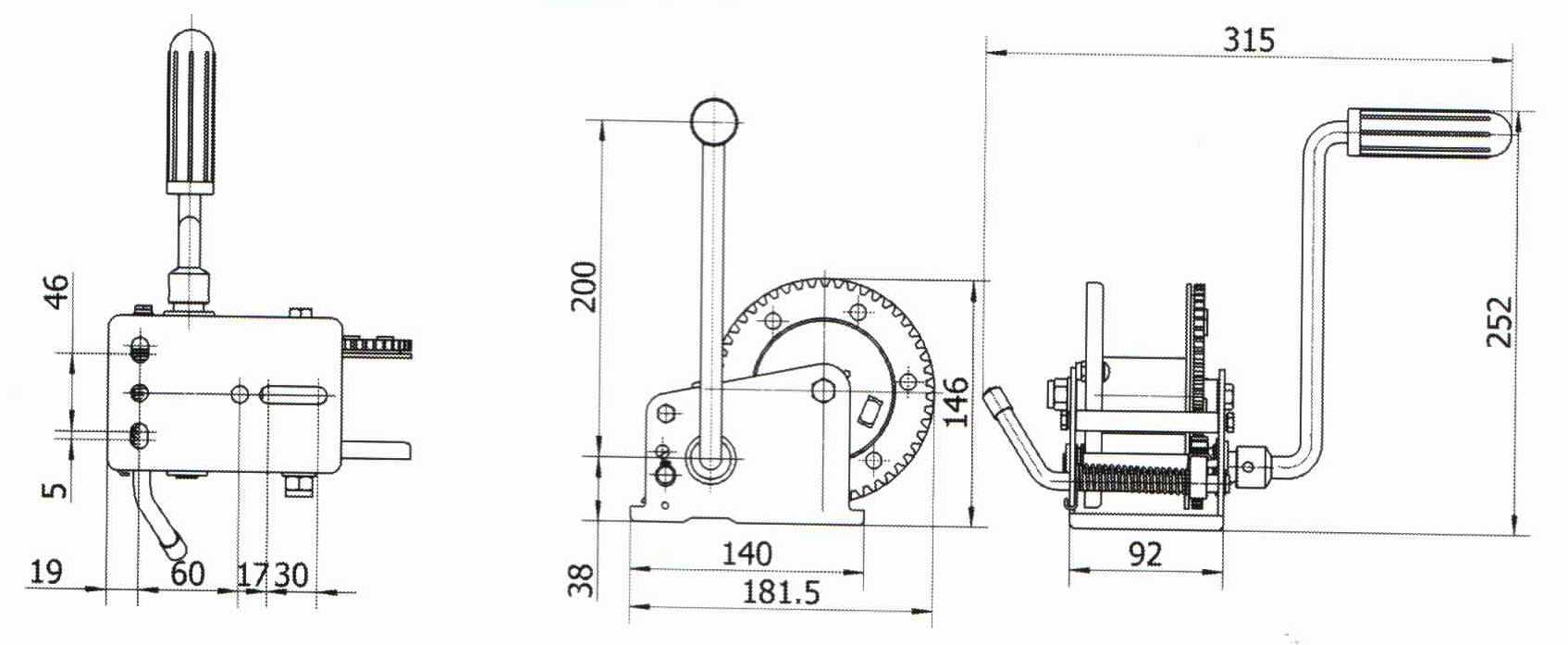

Click on drawing to enlarge.
