The RGW 3200 is a 2 speed hand winch that allows for optimum performance with minimal effort.
Position the handle to suit the load and wind speed required.
Features:
- Compact design.
- Formed reinforcements in frame for added frame strength
- Very low torque required for ease of operation
- One way Ratchet. Free spool in off direction.
- High quality one piece hardened steel gears.
- Superior finish quality for appearance and corrosion resistance.
- Extensively tested and QA inspected.
- 2 winding positions to give the speed and torque required for the job.
- Standard winch is supplied with cable and safety hook.
| Specifications | |
| Part No | AL01643 |
| Model | RGW3200-19 |
| Capacity | 3200 lbs - 1435 Kg |
| Ratio 1 |
5.4:1 |
| Ratio 2 |
17.5:1 |
| Drum | 170mm diam x 64 Wide |
| Weight | 7.7Kg |
| Cable | 6.35mm x 15m |

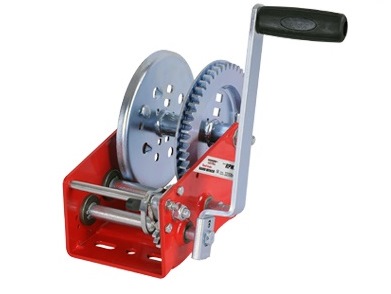

Photo below shows bare winch only. No cable.
