RBW2500The RBW2500 is a high quality brake winch and a proven performer typically fitted on larger applications like car trailers and irrigation pumps where additional safety and control are required.
Features include:
- Compact design requiring minimal space.
- Very low torque required for easy operation.
- Formed reinforcements in frame for added frame strength.
- Internally lubricated bushing and pinion shaft bearing for long life and ease of operation.
- Heat treated one piece gears.
- Gearbox and brake all sealed by strong steel cover to ovoid dust and rain.
- Safety ratchet gear to prevent slipping.
- Load activated brake. Standard.
- Brake is completely automatic and will hold the load in any position. Recoiling is impossible.
Aline trading presents the RBW2500 in 3 standard versions as listed below.
| Part Number | Description |
| AL01574 | Winch only. No cable or strap |
| AL01576 | With cable and safety hook |
| AL01579 | With Strap and safety hook |
| Specifications | |
| Capacity | 2500 lb / 1136 kg |
| Hand force required | 20lb |
| Gear Ratio | 8.8:1 |
| Hub diameter | 63mm |
| Maximum spool capacity |
15m of 6.35mm cable |
| Cable | 10m x 6.35mm cable |
| Strap | 6.1m x 50mm strap. 2.0t rated |
| AL01574 | 7.13 kg |
| AL01576 | 8.87 kg |
| AL01579 | 7.8 kg |

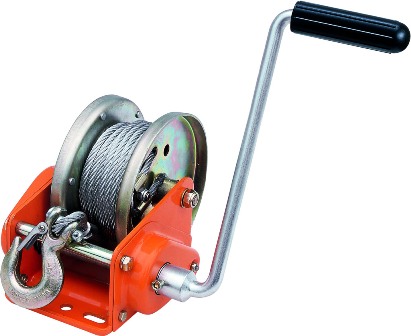

AL01576 shown.

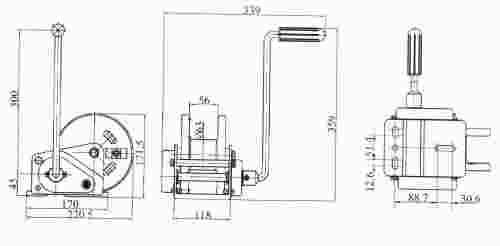

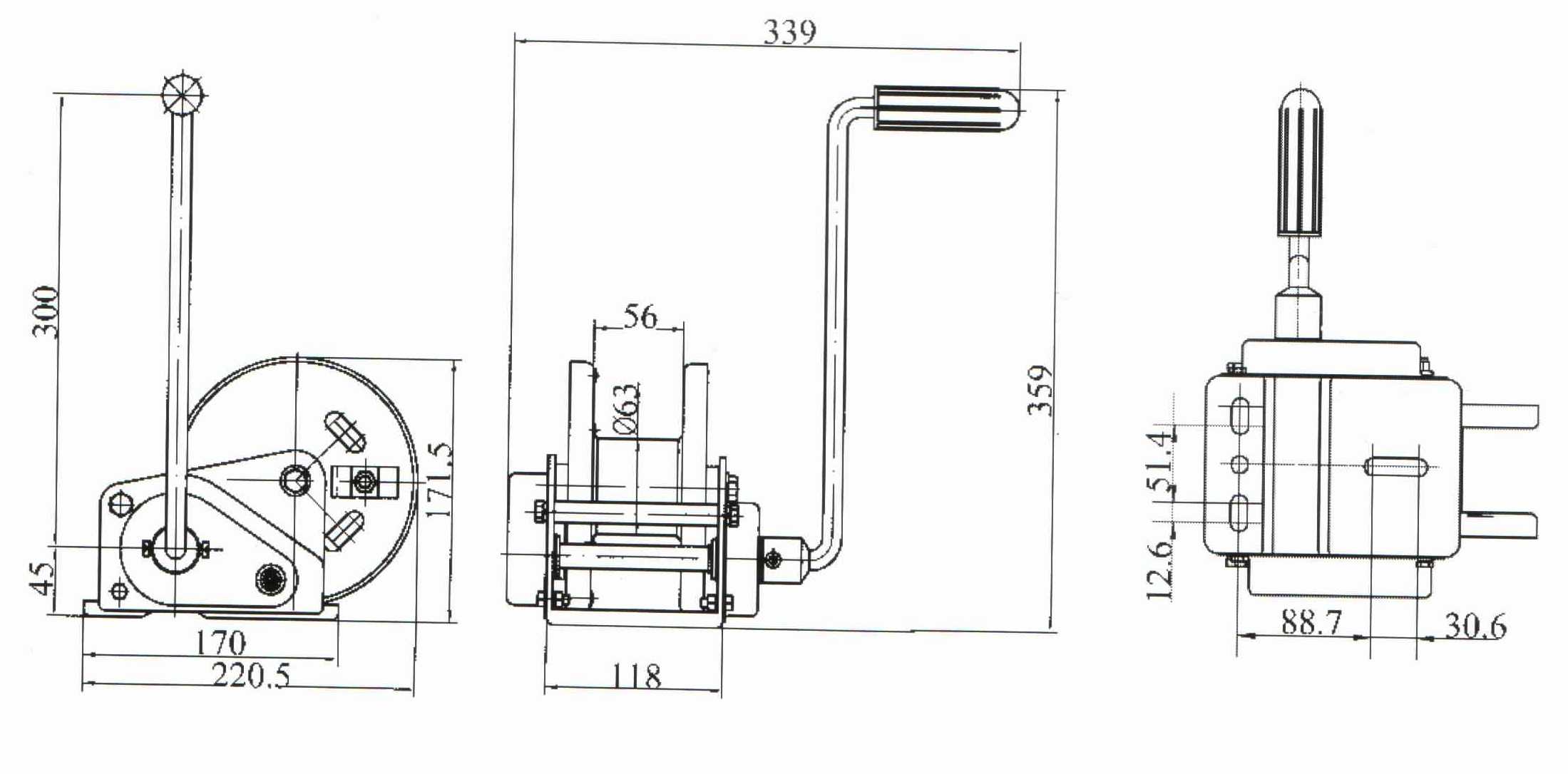

Click on drawing to enlarge.
