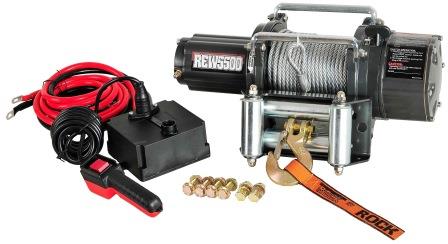

REW5500-24The REW5500-24V is a versatile 24V DC electric winch with numerous applications in the agricultural & industrial markets.
Features include:
- Fast line speed.
- Automatic load-holding brake.
- Power in and power out.
- Free spooling.
- Low electric current draw.
- Hardened gears.
- Heavy duty 24V DC Motor.
- Quality aircraft grade cabling.
- Individual load testing.
Note: A suitable supply of 24V DC power is required to ensure proper operation and service life for these winches.
| Specifications | |
| Part Number | AL01625 |
| Model | REW5500-24 |
| Rated line pull | 5500lb (2497kg). Single line pull |
| gear reduction ratio | 294:1 |
| Motor | 2.5 kw (3.4hp) 24V Permanent magnet. |
| Drum size | 63mm diameter x 140mm wide |
| Cable supplied | 6.35mm x 24m steel. |
| Overall dimensions | (LxWxH) 436mm x 178mm x 173.5mm |
| Net Weight | 26.5 kg |
| Mounting bolt pattern | 166mm x 114.3mm |
| Performance of first layer | ||||
| Line pull | Line speed | Motor current | ||
| lb | kg | fpm | mpm | 24V amp |
| 0 | 0 | 9.74 | 2.97 | 24 |
| 2000 | 908 | 9.55 |
2.91 | 63 |
| 3000 | 1362 | 8.56 | 2.61 | 74 |
| 4000 | 1816 | 6.56 | 2.31 | 88 |
| 5500 | 2497 | 6.56 | 2.0 | 115 |
| Line pull by layer | ||
|
Cable Layer |
Rated line pull | |
| lb | kg | |
| 1 | 5500 | 2497 |
| 2 | 4640 | 2107 |
| 3 | 4020 | 1825 |
| 4 | 3545 | 1610 |
| 5 | 3170 | 1439 |
