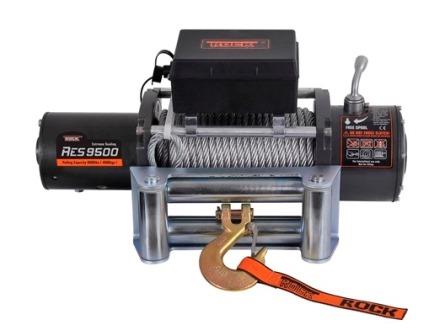

RES9500The RES9500 (EXTREME SEALING) is the most popular of our premium grade IP67 rated 12V winches. It’s a compact and versatile 12VDC electric winch with numerous applications in the agricultural, industrial and recreational markets. Including Farm Equipment, 4X4, car trailers, plant trailers, ATVs etc.
Features include:
- IP67 Rating.
- Three stage planetary gear system for fast line speed.
- Automatic load holding brake.
- Free spooling
- Power in and power out.
- Low electric current draw.
- Hardened gears.
- Heavy duty 3.6 kw series wound DC Motor.
- Quality aircraft grade cabling.
- Individual load testing.
Note: A suitable supply of 12V DC power is required to ensure proper operation and service life for these winches.
| Specifications | |
| Part Number | AL01629 |
| Model | RES9500 |
| Rated line pull - Single line | 9500lb (4310 kg) |
| Gear reduction ratio | 210:1 |
| Motor (series wound) | 3.6kW 12V (4.9hp) |
| IP Rating | IP67 |
| Drum size diameter | 63mm |
| Drum size length | 212mm |
| Cable diameter | 8.3mm |
| Cable length | 28 |

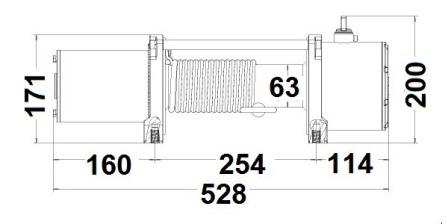

| Dimensions LxWxH | 528 x 161 x 200 |
| Mounting bolt pattern |
254mm x 114.3mm |
| Performance of first layer. | ||||
| Line pull | Line speed | Motor current | ||
| lb | kg | fpm | mpm | 12V amp |
| 0 | 0 | 21 | 6.4 | 86 |
| 2000 | 910 | 11 | 3.4 | 150 |
| 4000 | 1810 | 8.8 | 5.5 | 205 |
| 6000 | 2720 | 7.5 | 2.3 | 235 |
| 8000 | 3630 | 6 | 1.8 | 252 |
| 9500 | 4310 | 6.2 | 1.7 | 300 |
| Line pull and capacity by layer | ||
|
Cable Layer |
Rated line pull | |
| lb | kg | |
| 1 | 9500 | 4310 |
| 2 | 7374 | 3348 |
| 3 | 6246 | 2836 |
| 4 | 5417 | 2459 |
| 5 | 4783 | 2171 |

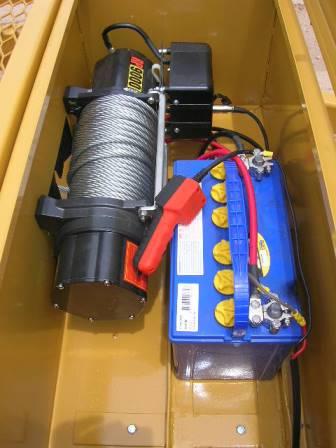

ROCK winch built into tool box on the front of a Heavy duty tandem trailer.
