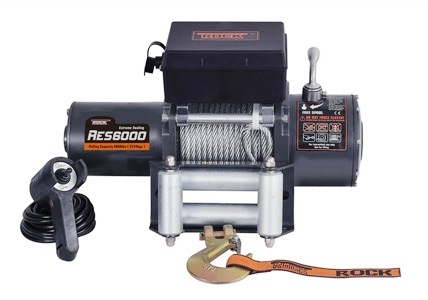

The RES 6000 (EXTREME SEALING) is the smallest of our IP67 rated premium grade 12V winches. It’s a compact and versatile 12VDC electric winch with numerous applications in the agricultural, industrial and recreational markets. Including Farm Equipment, 4X4, car trailers, plant trailers, ATVs etc.
Features include:
- IP67 Rating.
- Three stage planetary gear system for fast line speed.
- Automatic load holding brake.
- Free spooling
- Power in and power out.
- Low electric current draw.
- Hardened gears.
- Heavy duty 2.7kw series wound DC Motor.
- Quality aircraft grade cabling.
- Individual load testing.
Note: A suitable supply of 12V DC power is required to ensure proper operation and service life for these winches.
| Specifications | |
| Part Number | AL01626 |
| Model | RES6000 |
| Rated line pull - Single line | 6000lb (2724 kg) |
| Gear reduction ratio | 210:1- 3 stage planetary |
| Motor (series wound) | 2.7kW 12V (3.7hp) |
| IP Rating | IP 67 |
| Drum size diameter | 63mm |
| Drum size length | 124mm |
| Cable diameter | 7.14mm |
| Cable length | 24m |
| Weight net | 31.8 kg |

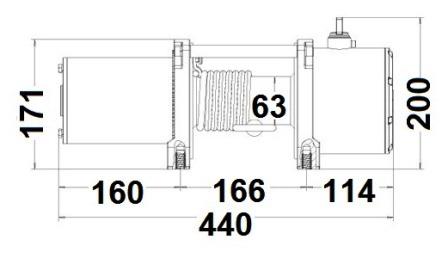

| Dimensions LxWxH | 440 x 161 x 200 |
| Mounting bolt pattern |
166mm x 114.3mm |

| Performance of first layer | ||||
| Line pull | Line speed | Motor current | ||
| lb | kg | fpm | mpm | 12V amp |
| 0 | 0 | 19.5 | 6 | 80 |
| 1500 | 680 | 15.8 | 4.8 | 125 |
| 3000 | 1364 | 13.6 | 4.1 | 160 |
| 4500 | 2040 | 10.4 | 3.2 | 205 |
| 6000 | 2724 | 9 | 2.7 | 220 |

| Line pull and capacity by layer | ||
|
Cable Layer |
Rated line pull | |
| lb | kg | |
| 1 | 6000 | 2724 |
| 2 | 4985 | 2263 |
| 3 | 4264 | 1936 |
| 4 | 3725 | 1691 |
| 5 | 3307 | 1501 |
