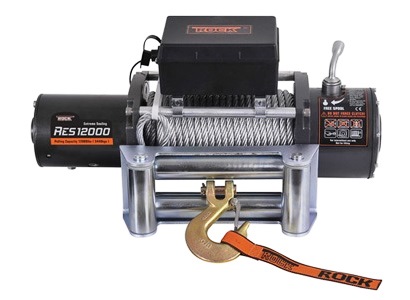

RES12000The RES12000 (EXTREME SEALING) is the largest of our premium grade IP67 rated 12V winches. It’s a compact and versatile 12VDC electric winch with numerous applications in the agricultural, industrial and recreational markets. Including Farm Equipment, 4X4, car trailers, plant trailers, ATVs etc.
Features include:
- IP67 Rating.
- Three stage planetary gear system for fast line speed.
- Automatic load holding brake.
- Free spooling
- Power in and power out.
- Low electric current draw.
- Hardened gears.
- Heavy duty 3.6kw series wound DC Motor.
- Quality aircraft grade cabling.
- Individual load testing.
Note: A suitable supply of 12V DC power is required to ensure proper operation and service life for these winches.
| Specifications | |
| Part Number | AL02685 |
| Model | RES12000 |
| Rated line pull - Single line | 12000lb (5445kg) |
| Gear reduction ratio | 294:1- 3 stage planetary. |
| Motor (series wound) |
3.6kW 12V (4.9hp) |
| Drum size diameter | 67mm |
| Drum size length | 212mm |
| Cable diameter | 9.5mm |
| Cable length | 28 |

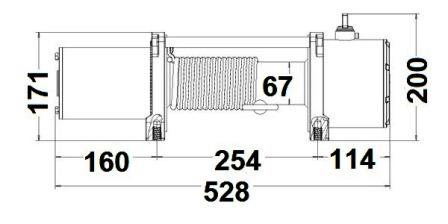

| Dimensions LxWxH | 528 x 161 x 200 |
| Mounting bolt pattern |
254mm x 114.3mm |
| Performance of first layer. |
||||
| Line pull | Line speed | Motor current | ||
| lb | kg | fpm | mpm | 12V amp |
| 0 | 0 | 16.4 | 5 | 85 |
| 4000 | 1810 | 8.8 | 2.7 | 160 |
| 6000 | 2720 | 7.5 | 2.3 | 191 |
| 8000 | 3630 | 6.7 | 2.0 | 235 |
| 10000 | 4540 | 5.6 | 1.7 | 270 |
| 12000 | 5440 | 4.9 | 1.5 | 300 |
| Line pull and capacity by layer | ||
|
Cable Layer |
Rated line pull | |
| lb | kg | |
| 1 | 12000 | 5448 |
| 2 | 9607 | 4362 |
| 3 | 8010 | 3637 |
| 4 | 6868 | 3118 |
| 5 | 6011 | 2729 |
