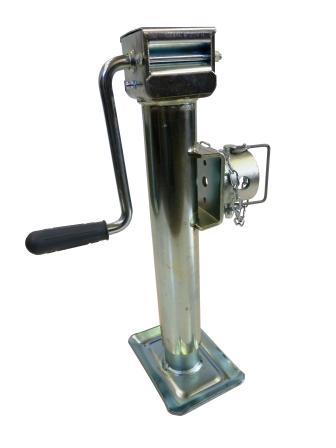

AL02650 SIMOL SIDE WIND TUBE MOUNT 1300 KgThe AL02650 is an Italian made SIMOL side wind jack with tube mount.
Capacity = 1300 Kg
Stroke = 250mm
Supplied with weld on tube. Not shown.
| Part Number | AL02650 |
| Model | LT3103 |
| Static load rating |
1300Kg |
| Screw stroke. +_ 10mm |
250mm |
| Tube size diameter x shape |
57mm round |
| Unit weight |
6.3 Kg |
| Finish | zinc plated |
| Mount | tube |

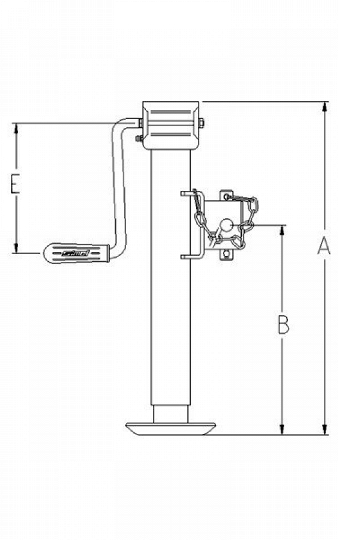

| A | 430mm |
| B | 280mm |
| E | 168mm |
