AL02633 SIDE WIND 1300 Kg
Aline Trading Pty Ltd

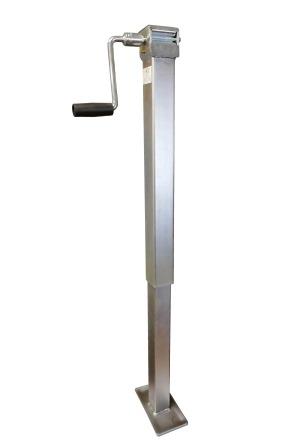

This long bodied, high lift jack has been developed for applications that require additional lift height such as removing camper or work backs from Ute trays.

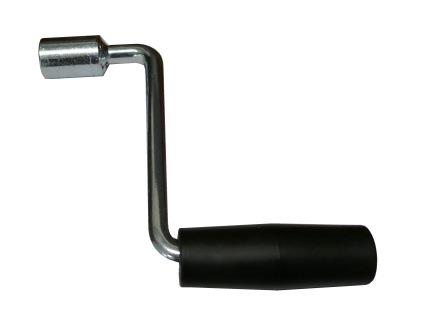

A removable handle makes storage easier.
The mounting point is to be designed and manufactured by a suitably qualified person to suit the specific application.
| Part Number | AL02633 |
| Model | 3153CLSQ |
| Static load rating |
1300 Kg |

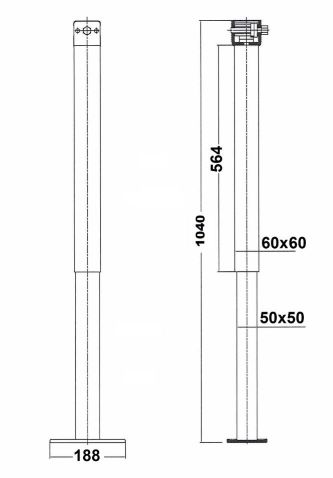

| Closed length o/a | 1040 mm |
| Open length o/a | 1430 mm |
| Screw stroke. +_ 10mm |
390 mm |
| Tube size |
60 mm SQ |
| Unit weight |
10.1 Kg |
| Finish | zinc plated |
| Mount | By Customer. |
