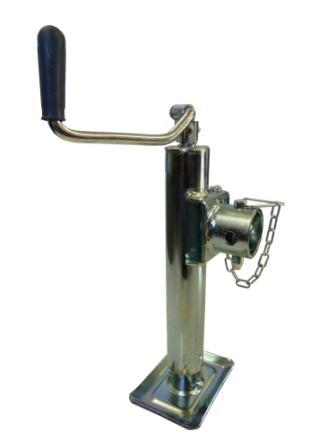

AL02052 SIMOL TOP WIND TUBE MOUNT 1300 KgThe AL02052 is an Italian made SIMOL top wind jack with tube mount.
Supplied with weld on tube mount. Not shown.
| Part Number | AL02052 |
| Model | ST3104 |
| Static load rating |
1300 Kg |
| Screw stroke. +_ 10mm |
250mm |
| Tube size diameter x shape |
57mm round |
| Unit weight |
5.4 Kg |
| Finish | zinc plated |
| Mount | tube |

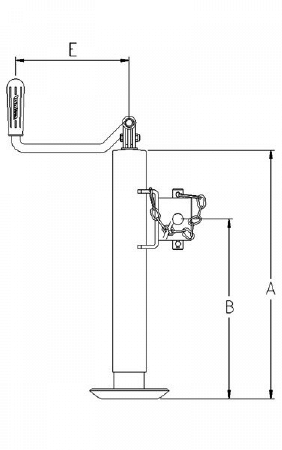

| A | 375mm |
| B | 265mm |
| E | 168mm |
