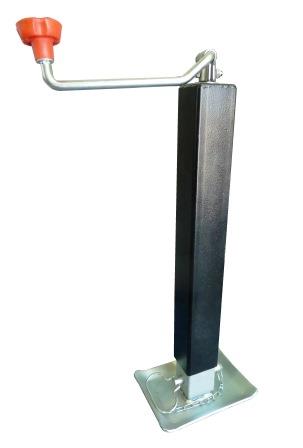

AL01128 TOP WIND DROP LEG 3180 KgThe AL01128 is a top wind landing leg with a drop foot and painted square body.
Suitable for agricultural and industrial use.
| Part Number | AL01128 |
| Model | ST7000B |
| Static load rating |
3180 Kg |
| Screw stroke. +_ 10mm |
400mm |

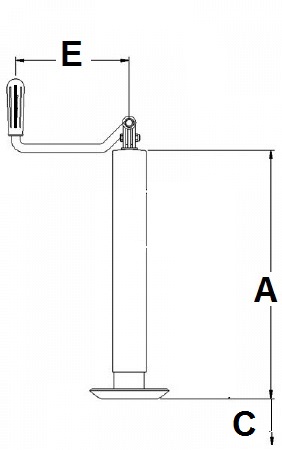

| Dimension A closed | 560mm |
| Dimension C Drop Leg. | 345mm |
| Dimension E | 220mm |
| Tube size diameter x shape |
65mm SQUARE |
| Unit weight |
9.9 Kg |
| Finish | Black paint |
| Mount | None |
