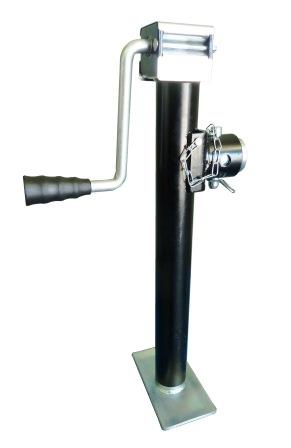

AL01125 SIDE WIND TUBE MOUNT 2270 Kg The AL01125 is a side wind tube mount landing leg with painted round body.
Suitable for agricultural and industrial use.
| Part Number | AL01125 |
| Model | LT5000C |
| Static load rating |
2270 Kg |
| Screw stroke. +_ 10mm |
370mm |

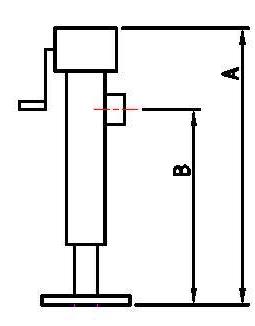

| Dimension A closed | 595mm |
| Dimension B closed | 420mm |
| Tube size diameter x shape |
57mm ROUND |
| Unit weight |
7.4 Kg |
| Finish | Black paint |
| Mount | Tube |
