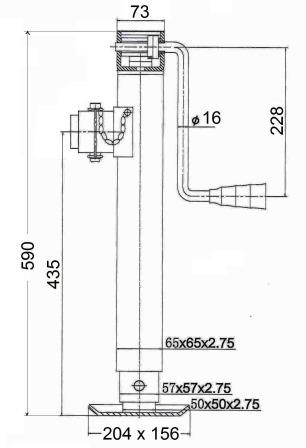

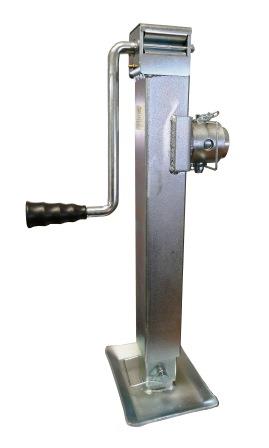

AL01118 SIDE WIND TUBE MOUNT DROP LEG 3180 KgThe AL01118 is a side wind drop leg jack suited to agricultural and industrial equipment.
| Part Number | AL01118 |
| Model | DT5903SFZCTM |
| Static load rating |
3180 kg |
| Screw stroke. +_ 10mm |
370mm |
| Tube size diameter x shape |
65 mm square |
| Unit weight |
12 kg |
| Finish | zinc plated |
| Mount | tube |
| Drop leg |
345mm |
