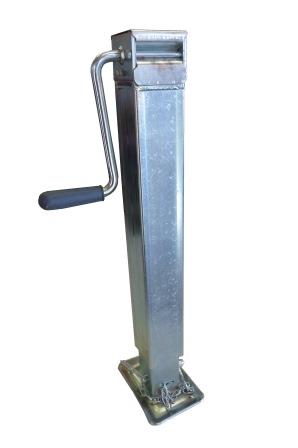

AL01115 SIMOL SIDE WIND DROP LEG 1500 KgThe AL01115 is an Italian made SIMOL side wind drop leg jack.
| Part Number | AL01115 |
| Model | DT5903SFZ |
| Static load rating |
1500 Kg |
| Screw stroke. +_ 10mm |
370mm |
| Tube size diameter x shape |
70mm square |
| Unit weight |
12.5 Kg |
| Finish | zinc plated |
| Mount | none |

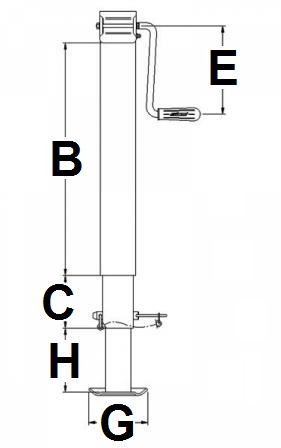

| B | 460 mm |
| C | 370mm |
| E | 170 mm |
| H | 340mm |
| G | 120mm x 165mm |
