The AL01092 is a complete landing leg set designed for use on 5th wheel trailers, agricultural machines and industrial equipment. The set consists of 2 x jack legs, 1 x handle and 1 x connecting drive shaft.
This model is made in Italy by SIMOL
These 2 leg sets allow operation from a single wind point and offer increased stability over a single jack leg.
Legs are supplied with mounting plates and brace anchors fitted.
| Part Number | AL01092 |
| Model | DG2800 |
| Static load rating |
6000 Kg |
| Screw stroke. +_ 10mm |
330mm |
| Tube size diameter x shape |
90mm square |
| Unit weight |
51.8 Kg / set |
| Finish | prime paint |
| Mount | Plates supplied fitted |

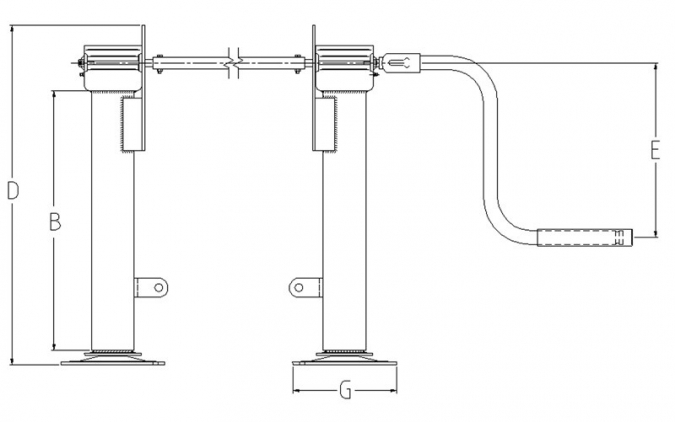

| B | 550mm |
| D | 720mm |
| E | 370mm |
| G | 220mm |
