AL02776 JOCKEY WHEEL 1500 Kg FOLDINGThe AL02776 is a quality Italian made product with a steel wheel, designed for agricultural and industrial applications. This model features a steel wheel with semi automated turn over, locking pedal and side handle.
| Part number | AL02776 |
| Model | DM364 |
| Wheel size Diameter x Width | 310mm x 90mm steel |
| Outer tube size and shape | 70 mm round |
| Static load rating in Kg | 1500 |
| Screw stroke in mm +- 10mm | 240 mm |

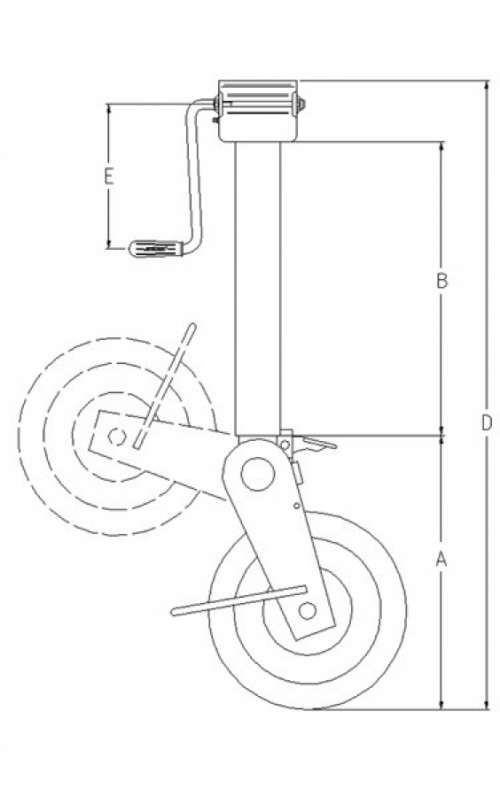

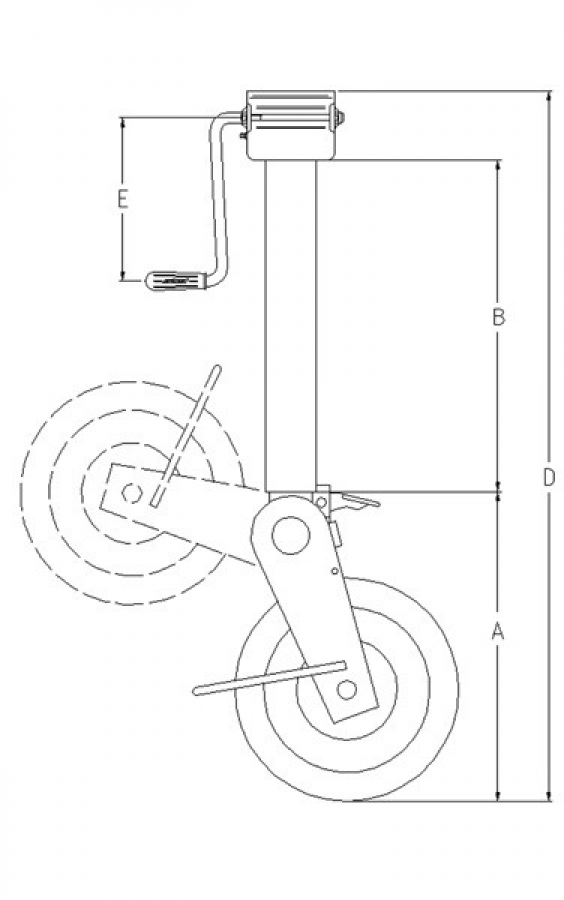

| A |
430 mm |
| B | 460 mm |
| D closed | 990 mm |
| E | 225 mm |
| Unit Weight | 30 Kg |
| Winding method | side wind |
