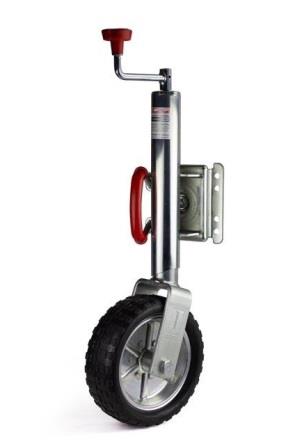

AL02445 JOCKEY WHEEL 455 KGThe AL02445 jockey wheel is ideal for use on campers and trailers requiring a wider tyre for floatation with its 250mm x 90mm “Pneumatic Look” solid tyre.
| Part number | AL02445 |
| Model | JWP10 |
| Wheel size Diameter x Width | 250mm x 90mm rubber |
| Outer tube size and shape | 57mm round |
| Static load rating in Kg | 455 Kg |
| Screw stroke in mm +- 10mm | 240 mm |
| Unit Weight | 12 Kg |
| Winding method | Top wind |
| Mount | Swivel - Bolt or weld on |
| Finish | Zinc plated. |
| Ground to centre of mount closed. | 430mm |
| OPTIONAL U BOLTS TO SUIT | |
| 75mm drawbar | AL01350 |
| 100mm drawbar | AL01351 |
