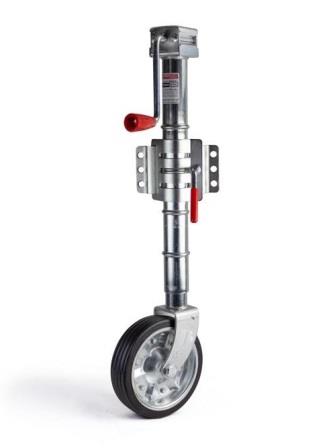

AL02444 JOCKEY WHEEL 455kg The AL02444 side wind jockey wheel features 4 position height adjustment and is ideal for busy drawbars where it is difficult to operate a top wind jockey wheel.
Supplied with clamp.
| Part number | AL02444 |
| Model | JW8CL |
| Wheel size Diameter x Width | 200mm x 50mm rubber |
| Outer tube size and shape | 51mm round |
| Static load rating in Kg | 455 Kg |
| Screw stroke in mm +- 10mm | 260 mm |
| Unit Weight | 7.0 Kg |
| Winding method | Side wind |
| Mount | Clamp - 4 positions@ 85mm centres |
| Finish | Zinc plated. |
| Ground to centre of 1st mount rib. | 325mm |
