AL01698 JOCKEY WHEEL 1000 Kg FOLDINGThe AL01698 is a quality Italian made product with a steel wheel, designed for agricultural and industrial applications. This model features a steel wheel with manual turn over feature and locking pin to gain additional ground clearance once the load is removed
| Part number | AL01698 |
| Model | S126 |
| Wheel size Diameter x Width | 310mm x 90mm steel |
| Outer tube size and shape | 70mm square |
| Static load rating in Kg | 1000 kg |
| Screw stroke in mm +- 10mm | 300 mm |

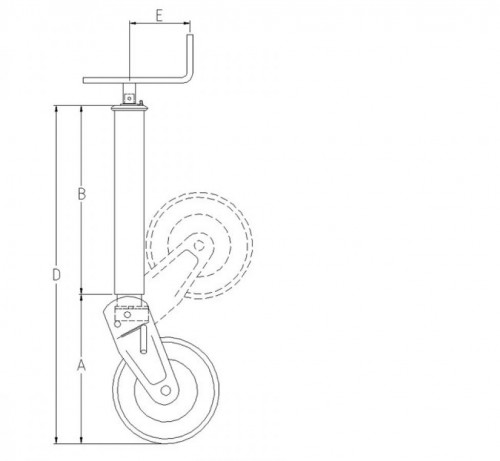

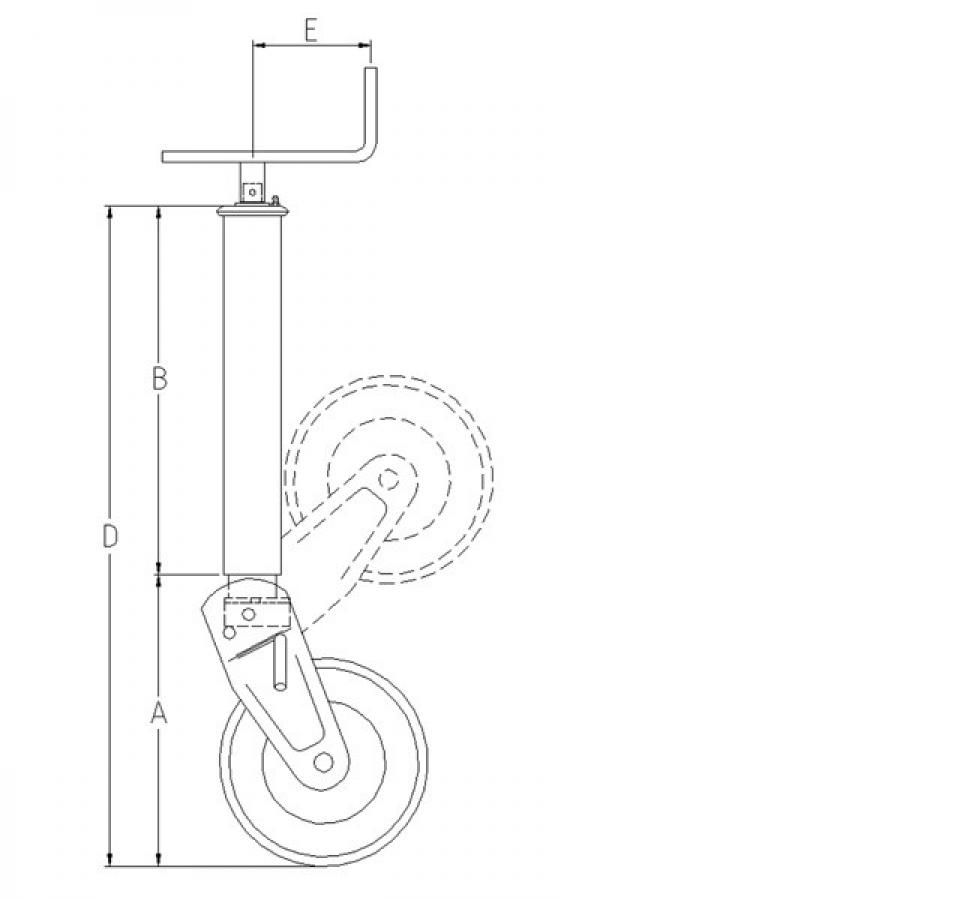

| A |
395 mm |
| B | 460 mm |
| D closed |
1010 mm |
| E | 185 mm |
| Unit Weight | 17.5 Kg |
| Winding method | top wind |
