AL01373 JOCKEY WHEEL 700 KgThe AL01373 extra height side winding jockey wheel features 4 height adjustments and is ideal as an upgrade for your caravan or camper. The body size matches most stock jockey wheeels and will fit the existing clamp style mount on your van without any modifications. The side winding handle also helps on busy draw bars with limited space.

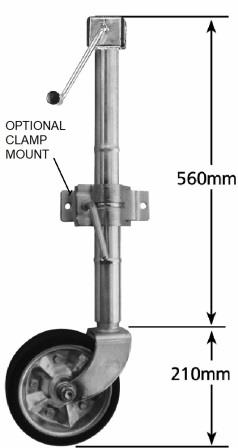

Photo shows optional calmp mount.
| Part number | AL1373 |
| Model | JWSW-4ZEH |
| Wheel size |
200mm x 55mm rubber tyre on Zinc Wheel with roller bearings. |
| Outer tube |
48mm round |
| Static load rating |
700 Kg |
| Screw stroke in mm |
225 mm +- 10mm |
| Unit Weight | 8.6 Kg |
| Winding method | Side wind |
| Mount | Clamp - 4 positions@ 80mm centres |
| Finish | Zinc plated. |
| Ground to centre of 1st mount rib. | 330mm |
