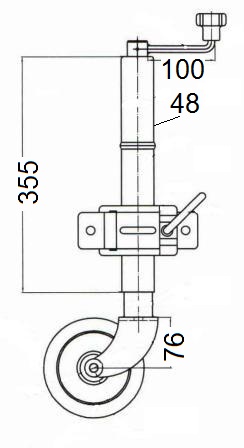

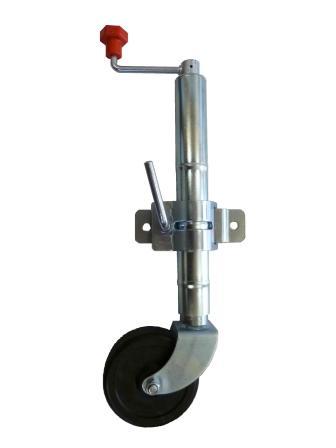

AL01354 JOCKEY WHEEL 350 KgThe AL01354 or (JW1) jockey wheel is the basic clamp on jockey wheel with rubber tyre used on most small trailers in Australia.
Supplied with clamp.
| Part number | AL01354 |
| Model | JW1 |
| Wheel size Diameter x Width | 140 x 45 solid rubber |
| Outer tube size and shape | 48 mm round |
| Static load rating in Kg | 350 Kg |
| Screw stroke in mm +- 10mm | 240mm |
| Unit Weight | 4.9 Kg |
| Winding method | Top wind |
| Mount | Clamp. Bolt or weld on |
| Finish | Zinc plated |
