AL00714 JOCKEY WHEEL 250 Kg AUTO FOLDThe AL000714 is a quality Italian made product with a rubber tyre on steel wheel, designed for agricultural and automotive applications. This model features a steel wheel with rubber tyre and automatic lift and lock system.
New model with bracket shown.
| Part number | AL00714 |
| Model | AC296 S |
| Wheel size Diameter x Width | 200mm x 60mm rubber on steel |
| Outer tube size and shape | 60 mm round |
| Static load rating in Kg | 250 Kg |
| Screw stroke in mm +- 10mm | 185 mm |

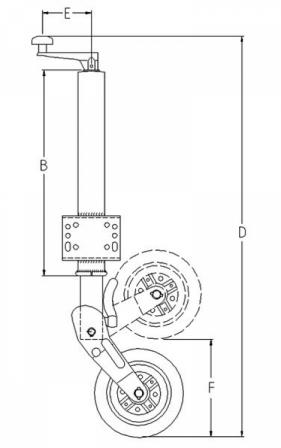

| B |
460 mm |
| D | 860 mm |
| E |
110 mm |
| F | 270 mm |
| Unit Weight | 9 Kg |
| Winding method | top wind |
