AL00624 JOCKEY WHEEL 1000 Kg AUTO FOLDINGThe AL000624 is a quality Italian made product with a rubber tyre on steel wheel, designed for agricultural and industrial applications. This model features a steel wheel with rubber tyre and self acting turn over and locking system.
| Part number | AL00624 |
| Model | A115 |
| Wheel size Diameter x Width | 280mm x 65mm rubber/steel |
| Outer tube size and shape | 70 mm Square |
| Static load rating in Kg | 1000 Kg |
| Screw stroke in mm +- 10mm | 230 mm |

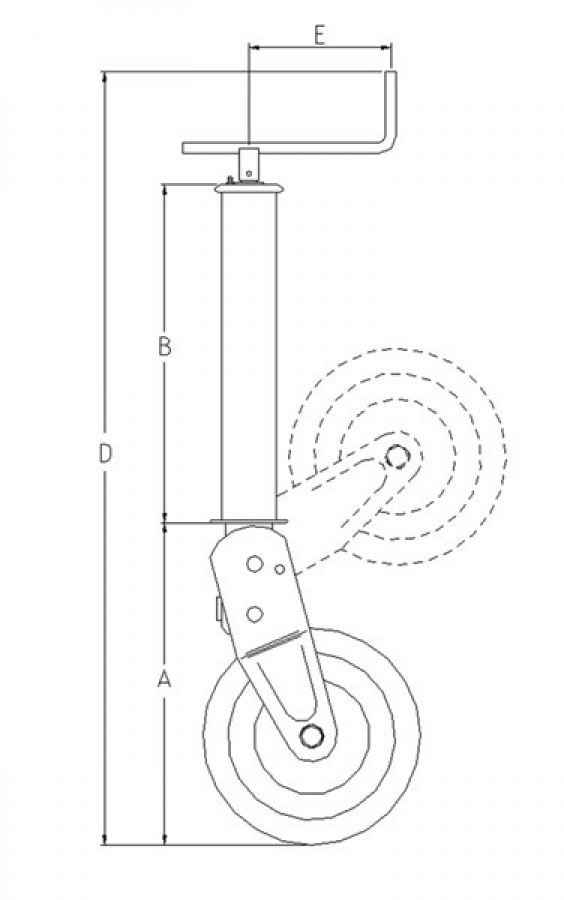

| A |
490 mm |
| B | 460 mm |
| D closed |
1105 mm |
| E | 185 mm |
| Unit Weight | 16.3 Kg |
| Winding method | top wind |
| Finish | prime paint |
