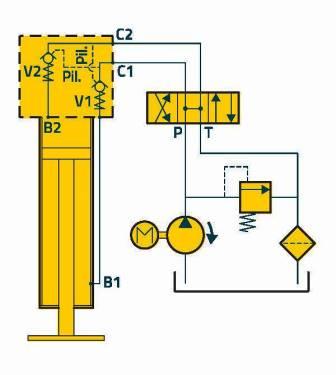

AL01313 HYDRAULIC JACKThe AL01313 is a double acting hydraulic jack with two block valves and is suitable for a wide range of agricultural and industrial applications.
| Part Number | AL01313 |
| Model | H1042 |
| Static load rating @ 100 bar |
2800 Kg |
| Static load rating @ 150 bar | 4200 Kg |
| Static load rating @ 200 bar | 5600 Kg |
| Max working pressure | 250 bar |
| Oil capacity | 1.2 lt |
| Hose ports | 3/8" Gas (BSPP) |
| Stroke. +_ 10mm |
400mm |
| Tube size diameter x shape |
100mm square |
| Unit weight |
30 Kg |
| Finish | Prime paint |
| Mount | none |

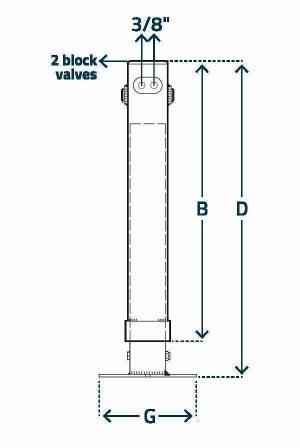

| B = Body length. |
630mm |
| D = O/A Closed height |
720mm |
| G = Base plate diameter |
280mm |
