HAND - 7 Lt TANKAline Trading Pty Ltd

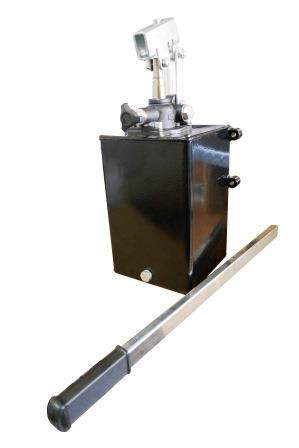

A quality double acting hand pump with 7 lt steel tank for single acting cylinders.
| SPECIFICATIONS | |
| Part Number | AL00117 |
| Displacement/stroke | 45 cc |
| Pressure Optimal | 80 BAR |
| Handle force @ 80 BAR | 250N |
| Pressure Max | 280 BAR |
| Handle force at 280 BAR |
900N |
| Dry weight incl handle | 9.3 KG |
| Oil Tank Capacity. | 7 Lt |
| O/A Height | 450 mm |
| Mount Holes. | 90mm H x 195mm W |
| Handle length | 600 mm |
| Pump body | Cast Iron - black |
| Piston coating. | Niploy |
| Externals incl handle | White zinc plated. |
| Tank | Metal 7 lt - Black |
