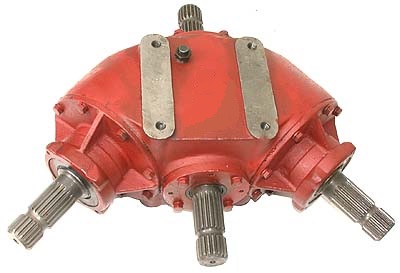

A150D - 150 HP150 HP power divider gearbox, suitable for use on multi head slashers.
NOTE: GEARBOXES ARE SHIPPED WITHOUT OIL. Please fill before use.
| Part No | AL00729 |
| Gear Ratio | 1:1 |
| HP at 1000 RPM input. | 200 |
| O/P torque at 1000 RPM | 1424Nm |
| HP at 540 RPM input. | 135 |
| O/P Torque at 540 RPM. | 1780 Nm |
| Shafts | 13/4"Z20 |

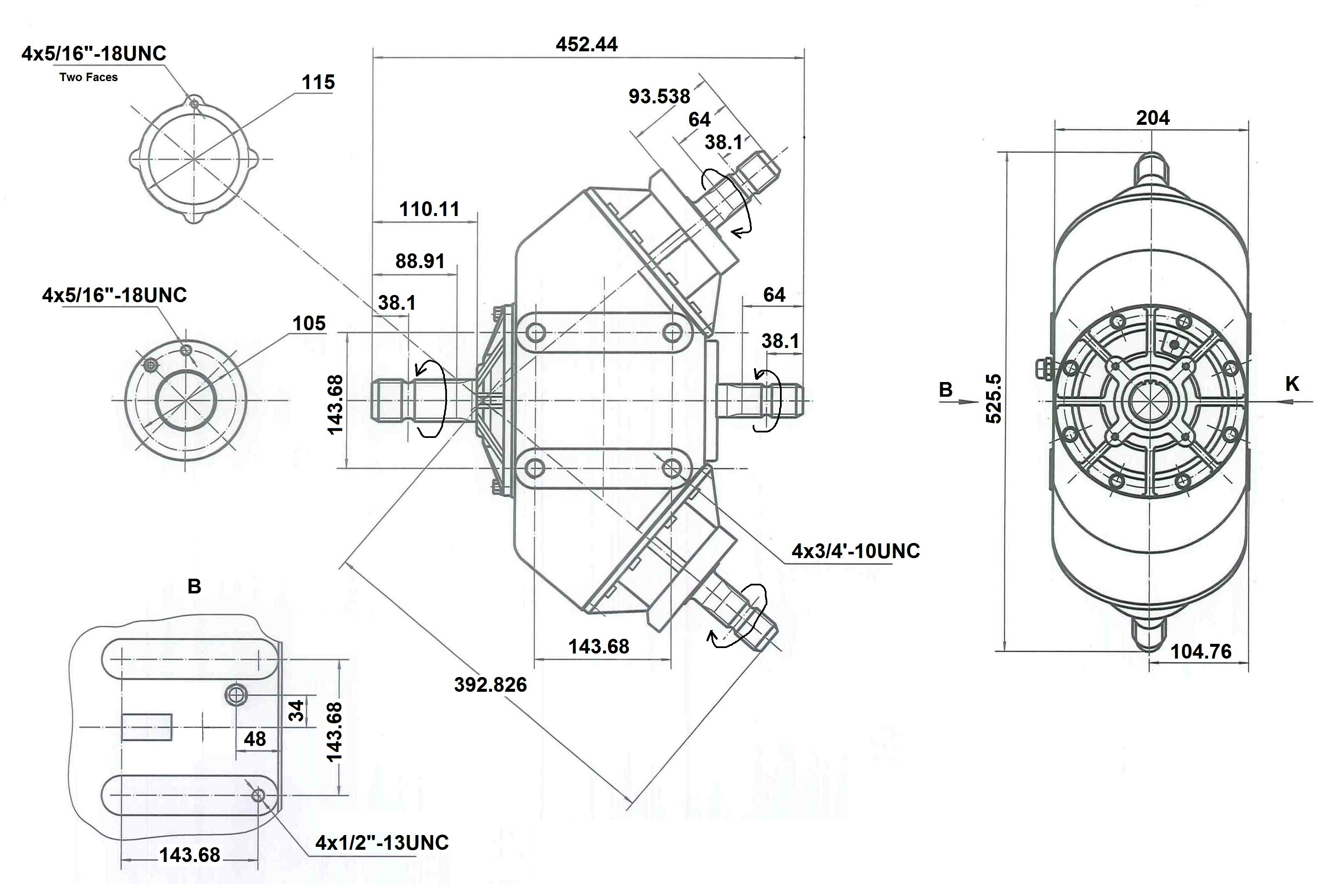

Click on drawing below to enlarge.
