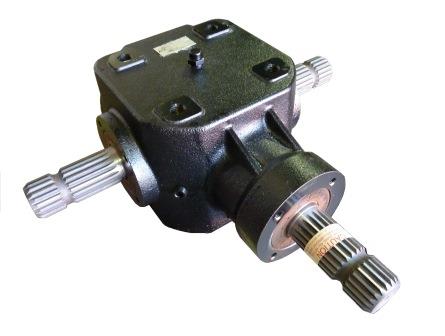

AL01923

Part No AL01923

Ratio: 1:1

Input rotation = Anti Clockwise. Suitable for Agricultural PTO drive shafts.

A High Speed gearbox designed for applications requiring higher operating speeds than those offered by our standard range of agricultural gearboxes. The gearbox is made with quality spiral bevel gears with helical teeth. The helical design produces less vibration and noise than conventional straight cut mitre gears making them suitable for higher operating speeds.

(Average dry weight = 33Kg.)

Shaft size = 1 ¾” Z20 spline.

Oil capacity = 2.3lt (approx.) - SAE 90 EP gear oil.

Notes:

: Rotation MUST be as specified on the drawings.

: Ratings given are approximate. Prototype testing may be required for specific applications.

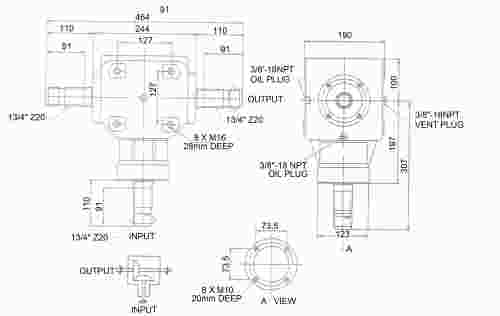

Click on drawing below to enlarge.
