A11A11

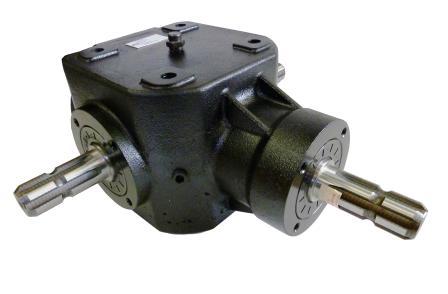

The A11 gearbox is available with various gear ratios suitable for a wide range of applications, including, auger drives, field bins, mowers, pump drives and other Agricultural or Industrial applications.
A sturdy SG iron housing, combined with high quality shaft and gear materials make the A11 a reliable performer.
Average dry weight = 25Kg.
Shaft size = 1 3/8Z6 spline. (540 PTO)
Input shaft = Z
HP ratings vary with the gear ratio and input speed. (540 or 1000 rpm.)
Oil capacity = 1.8 lt - SAE 90 EP gear oil.
| Part No | Model | Input | Output | ||||||
| Ratio | R.P.M | HP | KW | NM | NM | RPM | Rotation | ||
| AL01924 | A11100 | 1:1 | 540 | 90 | 66 | 1171 | 1171 | 540 | C |
| 1000 | 135 | 99 | 948 | 948 | 1000 | ||||
| AL01925 | A11192 | 1:1.92 | 540 | 58 | 43 | 755 | 393 | 1037 | C |
| 1000 | 90 | 66 | 632 | 329 | 1920 | ||||

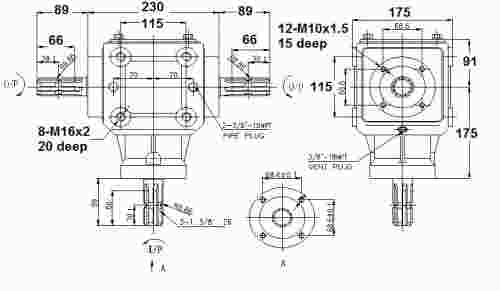

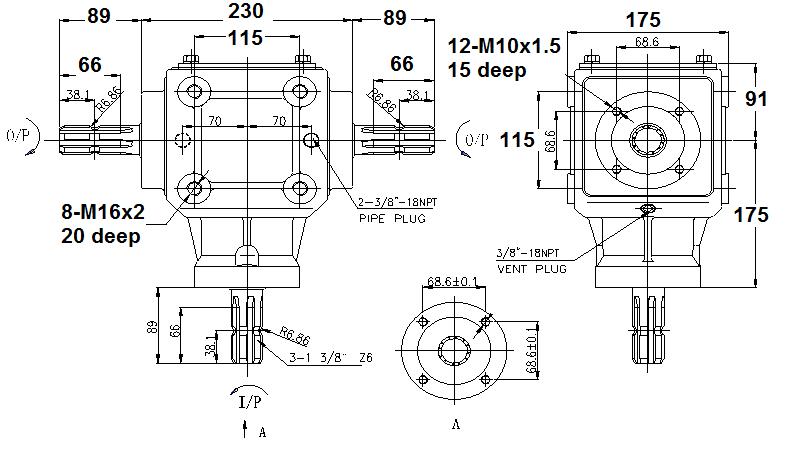

Click on the drawing below to enlarge.

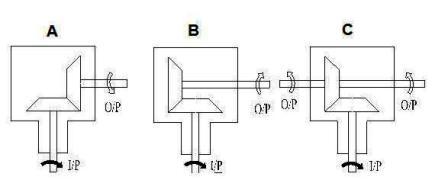

The standard A11 boxes are supplied with a C rotation.
