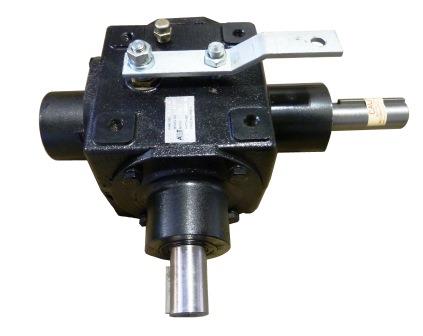

FR150-2 FORWARD REVERSEThe FR150-2 forward reverse gearbox has a 1.5:1 reduction ratio that is designed for use on grain handling augers.
New design offers:
- Ability to reduce auger speed without the use of belts or chains. This requires less space and reduces related OH & S issues.
- Sturdy gear selector and shaft assembly.
- Strong internal gear mechanism.
Warning: The gearbox shafts should be stationary before selecting gears. Any movement of the shafts during this procedure can cause unnecessary wear of the selector mechanism and will shorten the working life of the gearbox.
Input via X shaft.
| Part number | AL01219 |
| Model | FR150-2 |
| Gear ratio | 1.5:1 reduction |
| Power rating |
20 HP (KW) @ 540 rpm 30 HP (KW) @ 1000 rpm |
| Input torque |
265 NM @ 540 rpm 215 NM @ 1000 rpm |
| Output torque |
398 NM @ 540 rpm 322 NM @ 1000 rpm |
| Unit weight | 23kg |
| Mounting | 4 x holes at 114.3mm centres |
| Shafts | 31.75mm diameter with 6.35mm key. |
| Lubricant | SAE 90 EP gear oil |

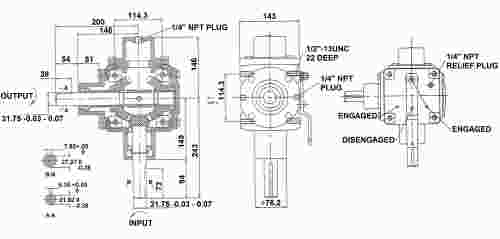

CLICK ON DRAWING BELOW TO ENLARGE.
