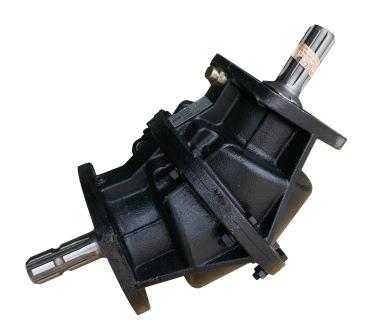

B45-04-1 120HPThe B45-04-1 gearbox is our largest 45 degree gearbox and is designed for use on large grain bins & silo out feed augers.
| Part Number | AL01265 |
| Model | B45-04-1 |
| Power rating | 120 HP @ 540 RPM |
| Torque | 1591 Nm |
| Shafts | 1 3/8 Z6 spline. |
| Gears | Bevel |
| Unit Weight - Dry | 41.3 Kg |
| Lubricant |
SAE 90 EP Gear Oil Rec volume = 1.0lt |

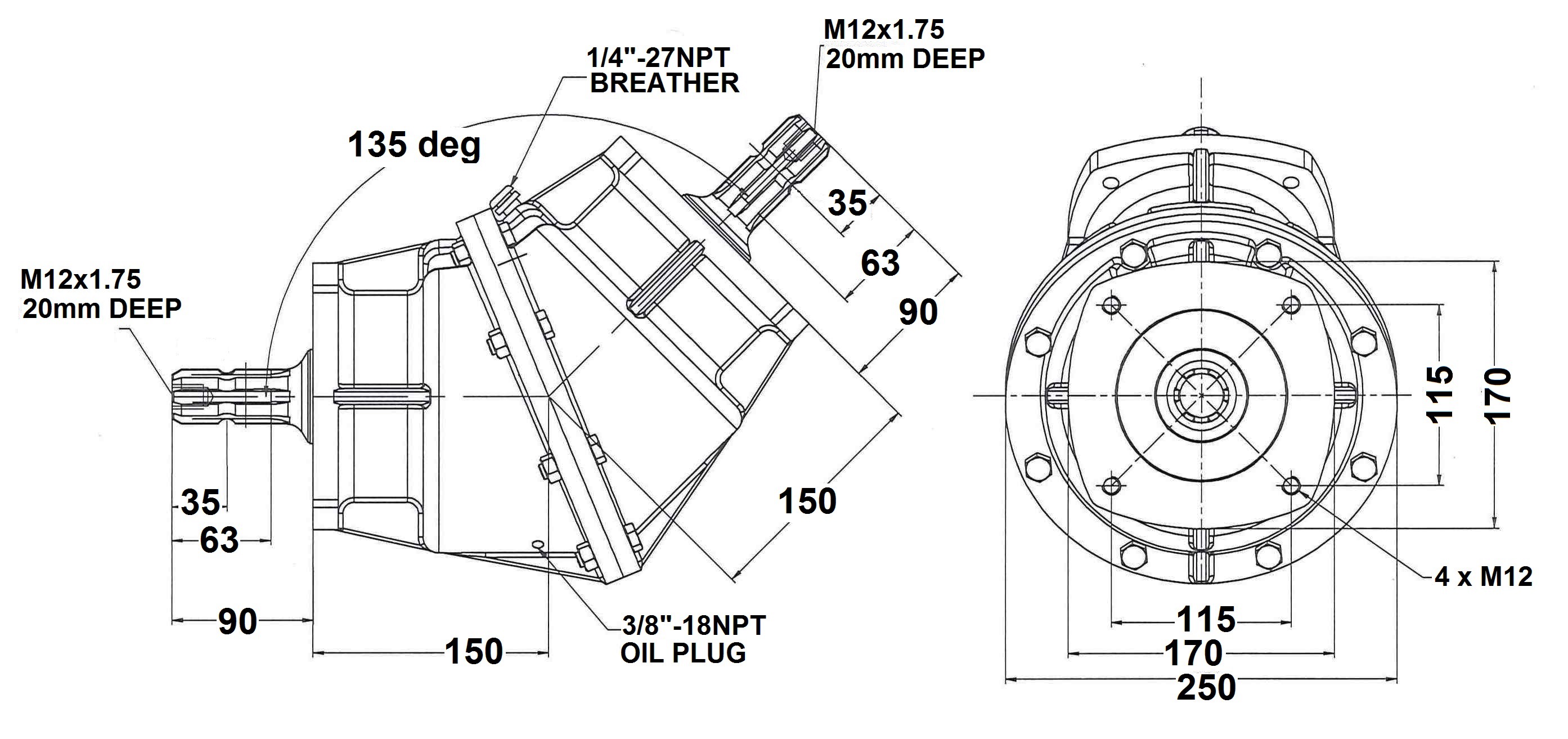

Click on drawing to enlarge.
