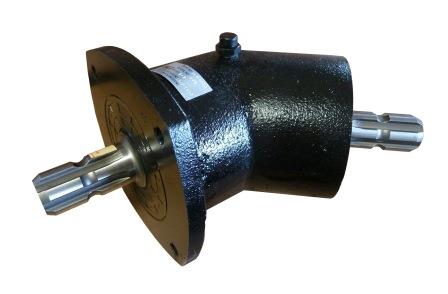

B45-02-1 90HPThe B45-02-1 gearbox is a compact 45 degree gearbox designed for use on grain bin / silo out feed augers.
| Part Number | AL01264 |
| Model | B45-02-1 |
| Power rating | 90 HP @ 540 RPM |
| Torque | 540 Nm |
| Shafts | 1 3/8 6 spline |
| Gears | Helical |
| Bearings | 6310 |
| Unit Weight - Dry | 16.5 Kg |
| Lubricant |
SAE 90 EP Gear Oil Rec volume = 0.5lt |

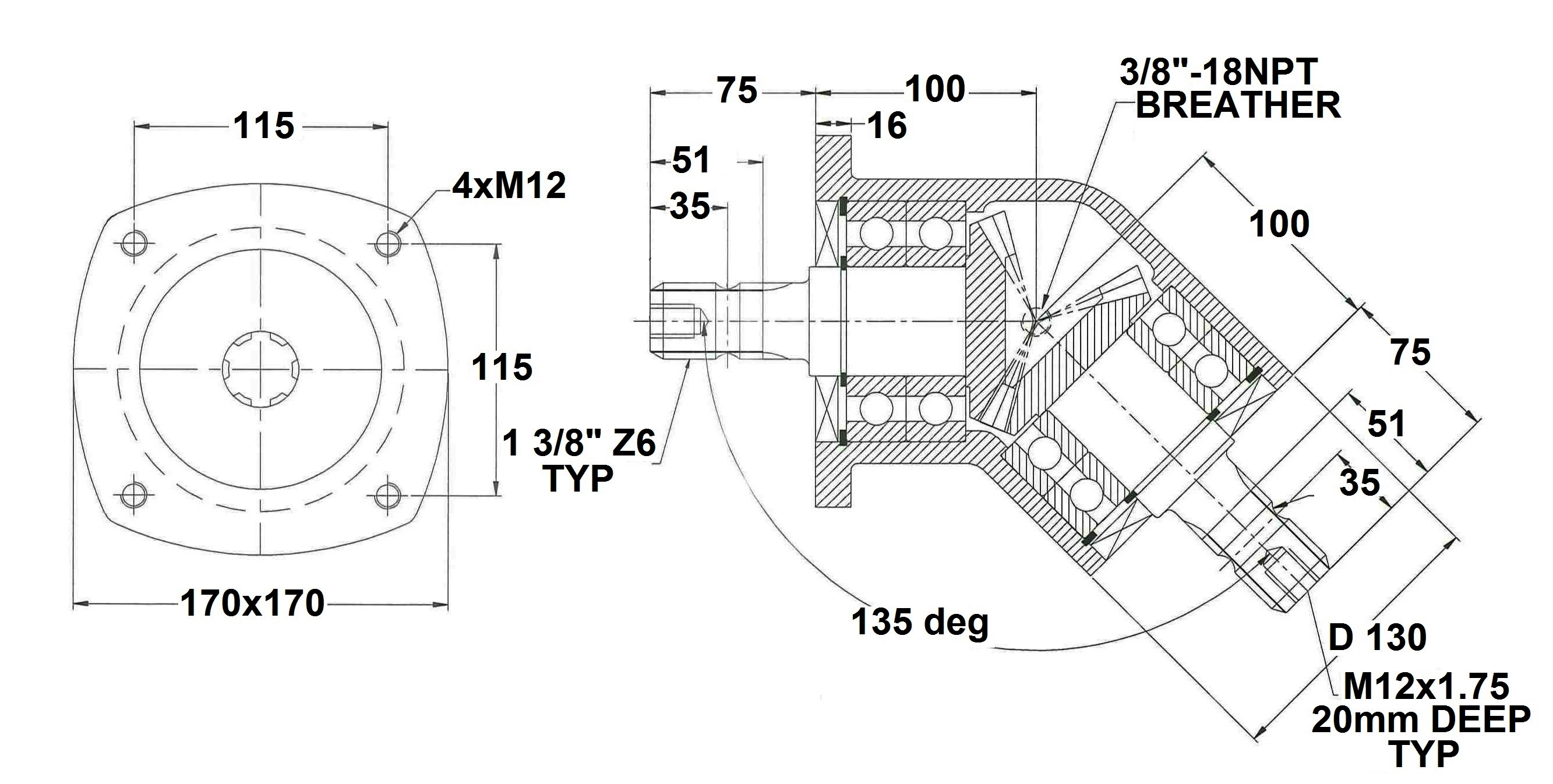

Click on drawing to enlarge.
